Restoring original visitor IPs

When your  website traffic is routed through the Cloudflare network, we act as a reverse proxy. This allows Cloudflare to speed up page load time by routing packets more efficiently and caching static resources (images, JavaScript, CSS, etc.). As a result, when responding to requests and logging them, your origin server returns a  Cloudflare IP address.

For example, if you install applications that depend on the incoming IP address of the original visitor, a Cloudflare IP address is logged by default. The original visitor IP address appears in an appended HTTP header called CF-Connecting-IP. By following our web server instructions, you can log the original visitor IP address at your origin server. If this HTTP header is not available when requests reach your origin server, check your Transform Rules and Managed Transforms configuration.

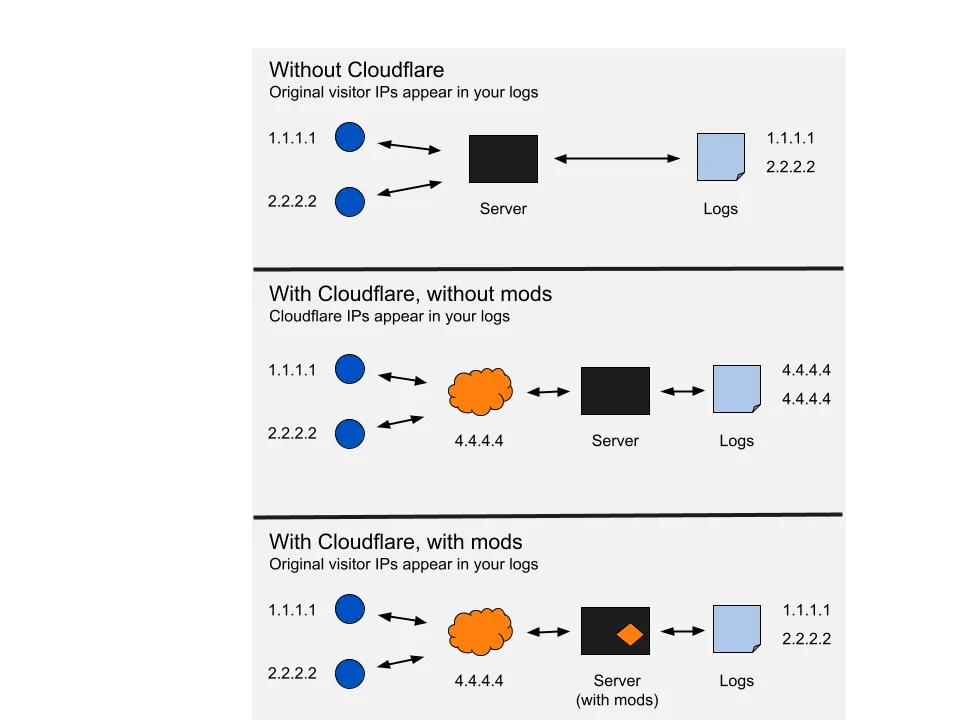

The diagram below illustrates the different ways that IP addresses are handled with and without Cloudflare.

The diagram illustrates the different ways that IP addresses are handled with and without Cloudflare.

​​ mod_remoteip

Cloudflare no longer updates and supports mod_cloudflare. However, if you are using an Apache web server with an operating system such as Ubuntu Server 18.04 and Debian 9 Stretch, you can use mod_remoteip to log your visitor’s original IP address.

As this module was created by an outside party, we can’t provide technical support for issues related to the plugin.

To install mod_remoteip on your Apache web server:

  1. Enable mod_remoteip by issuing the following command:
$ sudo a2enmod remoteip
  1. Update the site configuration to include RemoteIPHeader CF-Connecting-IP, e.g. /etc/apache2/sites-available/000-default.conf
ServerAdmin webmaster@localhost
DocumentRoot /var/www/html
RemoteIPHeader CF-Connecting-IP
ErrorLog ${APACHE_LOG_DIR}/error.log
CustomLog ${APACHE_LOG_DIR}/access.log combined
  1. Update combined LogFormat entry in apache.conf, replacing %h with %a in /etc/apache2/apache2.conf. For example, if your current LogFormat appeared as follows
LogFormat "%h %l %u %t \"%r\" %>s %O \"%{Referer}i\" \"%{User-Agent}i\"" combined

you would update LogFormat to the following:

LogFormat "%a %l %u %t \"%r\" %>s %O \"%{Referer}i\" \"%{User-Agent}i\"" combined
  1. Define trusted proxy addresses by creating /etc/apache2/conf-available/remoteip.conf by entering the following code and  Cloudflare IPs:
RemoteIPHeader CF-Connecting-IP
RemoteIPTrustedProxy (example IP address)
RemoteIPTrustedProxy (example IP address)
(repeat for all Cloudflare IPs listed at
  1. Enable Apache configuration:
$ sudo a2enconf remoteip
Enabling conf remoteip.
To activate the new configuration, you need to run:
service apache2 reload
  1. Test Apache configuration:
$ sudo apache2ctl configtest
Syntax OK
  1. Restart Apache:
$ sudo systemctl restart apache2

​​ mod_cloudflare

​​ Installing

There are two methods for installing mod_cloudflare: by downloading the Apache extension from GitHub or by adding code to your origin web server.

​​ Downloading packets or scripts from GitHub

If you are using an Apache web server, you can download mod_cloudflare from GitHub.

​​ Adding code to your origin web server

If you can’t install mod_cloudflare, or if there is no Cloudflare plugin available for your content management system platform to restore original visitor IP, add this code to your origin web server in or before thetag on any page that needs the original visitor IPs:


This command will only make the IP address available to scripts that need it. It doesn’t store the IP in your actual server logs.

​​ Removing

​​ Apache

To remove mod_cloudflare, you should comment out the Apache config line that loads mod_cloudflare.

This varies based on your Linux distribution, but for most people, if you look in /etc/apache2, you should be able to search to find the line:

LoadModule cloudflare_module

Comment or remove this line, then restart apache, and mod_cloudflare should be gone.

If you are running Ubuntu or Debian, you should see.


delete this file to remove mod_cloudflare, then restart Apache.

​​ Nginx

mod_cloudflare is not needed for Nginx. Use the ngx_http_realip_module NGINX module and the configuration parameters described in the Web server instructions instead.

​​ Web server instructions

Refer below for instructions on how to configure your web server to log original visitor IPs based on your web server type:

​​ Apache 2.4

  1. Make sure the following is installed:
    • Red Hat/Fedorasudo yum install httpd-devel libtool git
    • Debian/Ubuntusudo apt-get install apache2-dev libtool git
  2. Clone the following for the most recent build of mod_cloudflare:
    • Red Hat/Fedora/Debian/Ubuntu:git clone; cd mod_cloudflare
  3. Use the Apache extension tool to convert the .c file into a module:
    • Red Hat/Fedora/Debian/Ubuntu:apxs -a -i -c mod_cloudflare.c
  4. Restart and verify the module is active:
    • Red Hat/Fedoraservice httpd restart; httpd -M|grep cloudflare
    • Debian/Ubuntu:sudo apachectl restart; apache2ctl -M|grep cloudflare
  5. If your web server is behind a load balancer, add the following line to your Apache configuration (httpd.conf usually) and replace with your load balancer’s IP address:
IfModule cloudflare_module
CloudFlareRemoteIPHeader X-Forwarded-For
CloudFlareRemoteIPTrustedProxy [insert your load balancer’s IP address]

​​ Nginx

Use the ngx_http_realip_module Nginx module and the following configuration parameters:

set_real_ip_from (example IP address)
#use any of the following two
real_ip_header CF-Connecting-IP;
#real_ip_header X-Forwarded-For;

That list of prefixes needs to be updated regularly, and we publish the full list in  Cloudflare IP addresses.

Also refer to:  Cloudflare and NGINX.

​​ EasyApache and cPanel

  1. Run the following script to install mod_cloudflare as part of EasyApache: bash <(curl -s
  2. Upon installing, you will need to recompile your Apache with the new mod_cloudflare plugin.
  3. To fix this, open up your Apache configuration. This can typically be found in /etc/apache2/apache2.conf/etc/httpd/httpd.conf/usr/local/apache/conf/httpd.conf or another location depending on configuration. If you’re unsure, ask your hosting provider.
  4. At the very end add:CloudflareRemoteIPTrustedProxy {LOOPBACK_ADDRESS} So, if your server is located at, it will look like:CloudflareRemoteIPTrustedProxy
  5. If you have more than one server to add to the trusted proxy list, you can add them at the end: CloudflareRemoteIPTrustedProxy

​​ Lighttpd

To have Lighttpd automatically rewrite the server IP for the access logs and for your application, you can follow one of the two solutions below.

  1. Open your lighttpd.conf file and add mod_extforward to the server.modules list. It must come after mod_accesslog to show the real IP in the access logs
  2. Add the following code block anywhere in the lighttpd.conf file after the server modules list and then restart Lighttpd
$HTTP["remoteip"] == " (example IP address)"
extforward.forwarder = ( "all" => "trust" )
extforward.headers = ("CF-Connecting-IP")

​​ LiteSpeed server

  1. Go to your LiteSpeed Web Admin Console.
  2. Enable the option Use Client IP in Header in Configuration.
  3. Once enabled, your access logs will now show the correct IP addresses, and even PHP’s $_SERVER['REMOTE_ADDR'] variable will contain the client real IP address, instead of a Cloudflare IP address, which in itself will resolve most problems you could hit when enabling Cloudflare on PHP-enabled web sites (like WordPress or vBulletin installs).

​​ Microsoft IIS

​​ For IIS 7 - 8:

Follow the directions in the Microsoft Community.

​​ For IIS 8.5 - 10:

From IIS 8.5 onwards, custom logging is a built-in option. Refer to IIS Enhanced Logging.

  1. In IIS Manager, double click on Logging in the Actions menu of the site you are working on.

  2. After this launches, select W3C as the format and then click Select Fields next to the format drop-down in the Log File sub-section.

  3. Click on Add Field and add in CF-Connecting-IP header.

  4. Click Ok. You should see your new entry reflected under Custom Fields. Click on Apply when you are back in the Logging window.

  5. If this is successful, the log file should now have an underscore:You should also see the change in the fields:

  6. Restart the site, then W3SVC, then the entire instance if the change doesn’t reflect immediately.When using enhanced logging in IIS 8.5+, it does not restore original visitor IP at the application level.

​​ Tomcat 7

To have Tomcat7 automatically restore the original visitor IP to your access logs and application you will need to add %{CF-Connecting-IP}i into your log schema.

As an example, you could add the below block to your server.xml file.

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs" prefix="localhost_access_log." suffix=".txt" pattern="%{CF-Connecting-IP}i - %h %u %t - &quot;%r&quot; - %s - %b - %{CF-RAY}i"/>

Which would result in your logs looking like this:

Visitor IP - Cloudflare IP - [04/Dec/2014:23:18:15 -0500] - "GET / HTTP/1.1" - 200 - 1895 - 193d704b85200296-SJC

​​ Magento

Refer to this third-party tutorial on restoring original visitor IP with  Magento and Cloudflare.

Similarly, Cloudflare did not write this  Magento extension, but some of our customers have found it helpful.

As this plugin was created by an outside party, we can’t provide technical support for issues related to the plugin.

​​ IPB (Invision Power Board)

To enable correct IP matching when running an Invision Power Board 3 installation through Cloudflare, follow these directions:

Log into your IPB installation’s ACP.

  1. Click System.
  2. Under Overview, click Security.
  3. Under Security Center, click Security Settings.Check that Trust IP addresses provided by proxies? is green.

​​ IPB4 description of Trust IP addresses provided by proxies?

If your network environment means requests are handled through a proxy (such as in an intranet situation in an office or university, or on a load-balanced server cluster), you may need to enable this setting so that the correct IP address is used. However, when enabled, a malicious user can abuse the system to provide a fake IP address. In most environments, this setting should be left off.


If you are using an Apache server, then we would recommend installing mod_remoteip to restore the visitor IP back to your logs.

If you do not have access to your server to install a mod, then you may be able to modify the core.

​​ MyBB forums

More recent versions of MyBB include a Scrutinize User’s IP address option.

Admin CP > Configuration > Server and Optimization Options > Scrutinize User's IP address? > Yes

Alternatively, you may install the  Cloudflare management plugin available for MyBB 1.6.

​​ MyBB 1.6.0, 1.6.1, 1.6.2, or 1.6.3

  1. Navigate to ./inc/functions.php.
  2. Go to line 2790.
  3. Replace:if(isset($_SERVER['REMOTE_ADDR']))With:if(isset($_SERVER['HTTP_CF_CONNECTING_IP']))
  4. Then, replace:$ip = $_SERVER['REMOTE_ADDR'];With:$ip = $_SERVER['HTTP_CF_CONNECTING_IP'];

​​ Vanilla forums

A member of the Vanilla team has written a  Cloudflare plugin for Vanilla to restore original visitor IP to the log files for self-hosted sites.

As this plugin was created by an outside party, we can’t provide technical support for issues related to the plugin.MediaWiki

  1. Open includes/GlobalFunctions.php. At approximately line 370, change the following:$forward = "\t(proxied via {$_SERVER['REMOTE_ADDR']}{$forward})";to$forward = "\t(proxied via {$_SERVER['HTTP_CF_CONNECTING_IP']}{$forward})";
  2. Open includes/ProxyTools.php. At approximately line 79, find:if ( isset( $_SERVER['REMOTE_ADDR'] ) ){and replace with:if ( isset( $_SERVER['HTTP_CF_CONNECTING_IP'] ) ){The second step only applies to MediaWiki versions 1.18.0 and older. Newer versions of MediaWiki have completely rewritten ProxyTools.php and the following code is no longer present.
  3. Find at approximately line 80:$ipchain = array( IP::canonicalize($_SERVER['REMOTE_ADDR']) );Save and upload to your origin web server.

​​ For versions around 1.27.1:

  1. Go to line 1232 in GlobalFunctions.php, change REMOTE_ADDR to HTTP_CF_CONNECTING_IP.
  2. Next, go to WebRequest.php, in lines 1151 to line 1159, change REMOTE_ADDR to HTTP_CF_CONNECTING_IP.

​​ XenForo

A XenForo user has created a  plugin for Cloudflare.

As this plugin was created by an outside party, we can’t provide technical support for issues related to the plugin.

  1. Open library/config.php.
  2. At the end, add:if (isset($_SERVER['HTTP_CF_CONNECTING_IP'])) { $_SERVER['REMOTE_ADDR'] = $_SERVER['HTTP_CF_CONNECTING_IP'];}
  3. Upload and overwrite.

​​ PunBB

An outside party has created a  module for Cloudflare and PunBB that will restore original visitor IP.

As this plugin was created by an outside party, we can’t provide technical support for issues related to the plugin.Cherokee server

  1. Launch cherokee-admin on your server.
  2. Navigate to the Cherokee Administration interface in your web browser.
  3. Select the Virtual Server for the domain that is being serviced by Cloudflare.
  4. On the Logging tab for your selected Virtual Server, enable Accept Forwarded IPs.
  5. In the Accept from Hosts box, enter  Cloudflare’s IP addresses.

​​ Livezilla

You can fix the IP address by changing the PHP IP Server Param field on the Livezilla server configuration to HTTP_CF_CONNECTING_IP.

​​ Datalife Engine

To restore visitor IP to DataLife Engine:

  1. Open:/engine/inc/include/$db_ip_split = explode( ".", $_SERVER['REMOTE_ADDR'] );Change to:$db_ip_split = explode(".", $_SERVER['HTTP_CF_CONNECTING_IP'] );
  2. Find:$ip_split = explode( ".", $_SERVER['REMOTE_ADDR'] );Change to:$ip_split = explode(".", $_SERVER['HTTP_CF_CONNECTING_IP'] );
  3. Open:/engine/modules/addcomments.phpFind:$_SERVER['REMOTE_ADDR'],Change to:$_SERVER['HTTP_CF_CONNECTING_IP'],
  4. Find:$db_ip_split = explode( ".", $_SERVER['REMOTE_ADDR'] );Change to:$db_ip_split = explode( ".", $_SERVER['HTTP_CF_CONNECTING_IP'] );

​​ TYPO3

An outside developer has created a  Cloudflare extension for TYPO3 that will restore original visitor IP to your logs. The extension will also give the ability to clear your Cloudflare cache.

As this plugin was created by an outside party, we can’t provide technical support for issues related to the plugin.

​​ VestaCP

If you use the hosting control panel VestaCP, you have both Nginx and Apache running on your server. Requests are proxied through Nginx before going to Apache.

Because of this Nginx proxy, you actually need to the instructions to configure Nginx to return the real visitor IP address.  Mod_remoteip for Apache is not needed unless you disable the Nginx server for some requests. Adding  mod_remoteip to Apache will not conflict with the Nginx server configuration.

​​ node.js

An outside developer has created a module to restore visitor IP called  node_cloudflare.

​​ HAProxy

In order to extract the original client IP in the X_FORWARDED_FOR header, you need to use the following configuration in HAProxy:

  1. Create a text file CF_ips.lst containing all IP ranges from
  2. Ensure to disable option forwardfor in HAProxy

HAProxy config:

acl from_cf src -f /path/to/CF_ips.lst
acl cf_ip_hdr req.hdr(CF-Connecting-IP) -m found
http-request set-header X-Forwarded-For %[req.hdr(CF-Connecting-IP)] if from_cf cf_ip_hdr

​​ Envoy Gateway

To extract the original client IP for your Envoy Gateway, set a Client Traffic Policy to look for the custom CF-Connecting-IP header.

Truncated Client Traffic Policy example
name: CF-Connecting-IP
failClosed: true

For more details, refer to Custom header original IP detection extension.
